Model 63 Sump Pump Test


Model 63 Sump Pump Test

Residential Use Sump Pumps

PREMIUM SERIES submersible pump for dewatering (sump) systems

Where to Buy

Enter postal code to view distributors that carry Model 63 Sump Pump Test.
  • Features and Benefits
    • Float-operated, submersible, 2-pole mechanical switch integrating advanced switch technology
    • Corrosion-resistant, powder coated epoxy finish
    • All cast iron construction
    • Viton outer switch boot
    • No sheet metal parts to rust or corrode

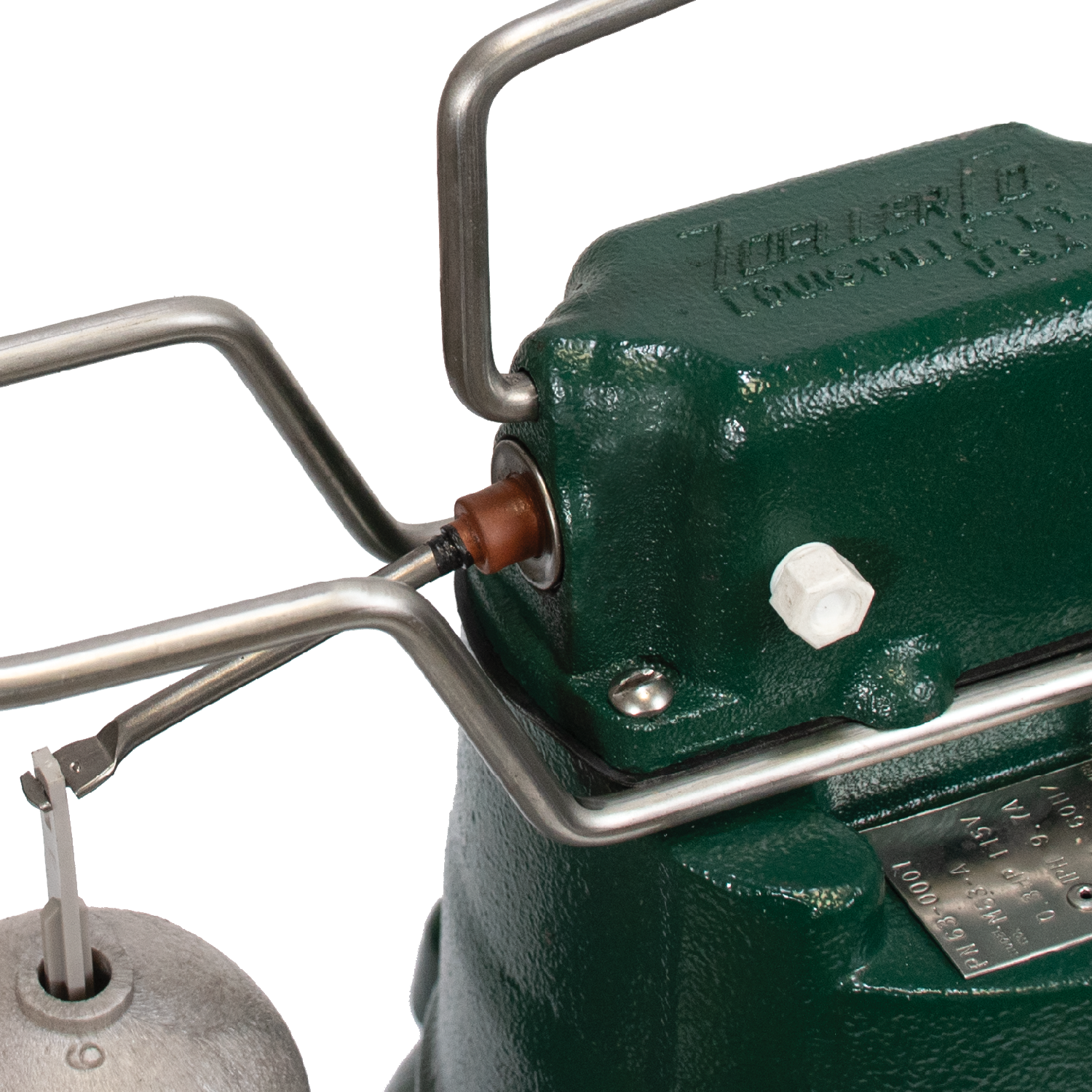

    • Stainless steel screws, switch arm, guard and handle

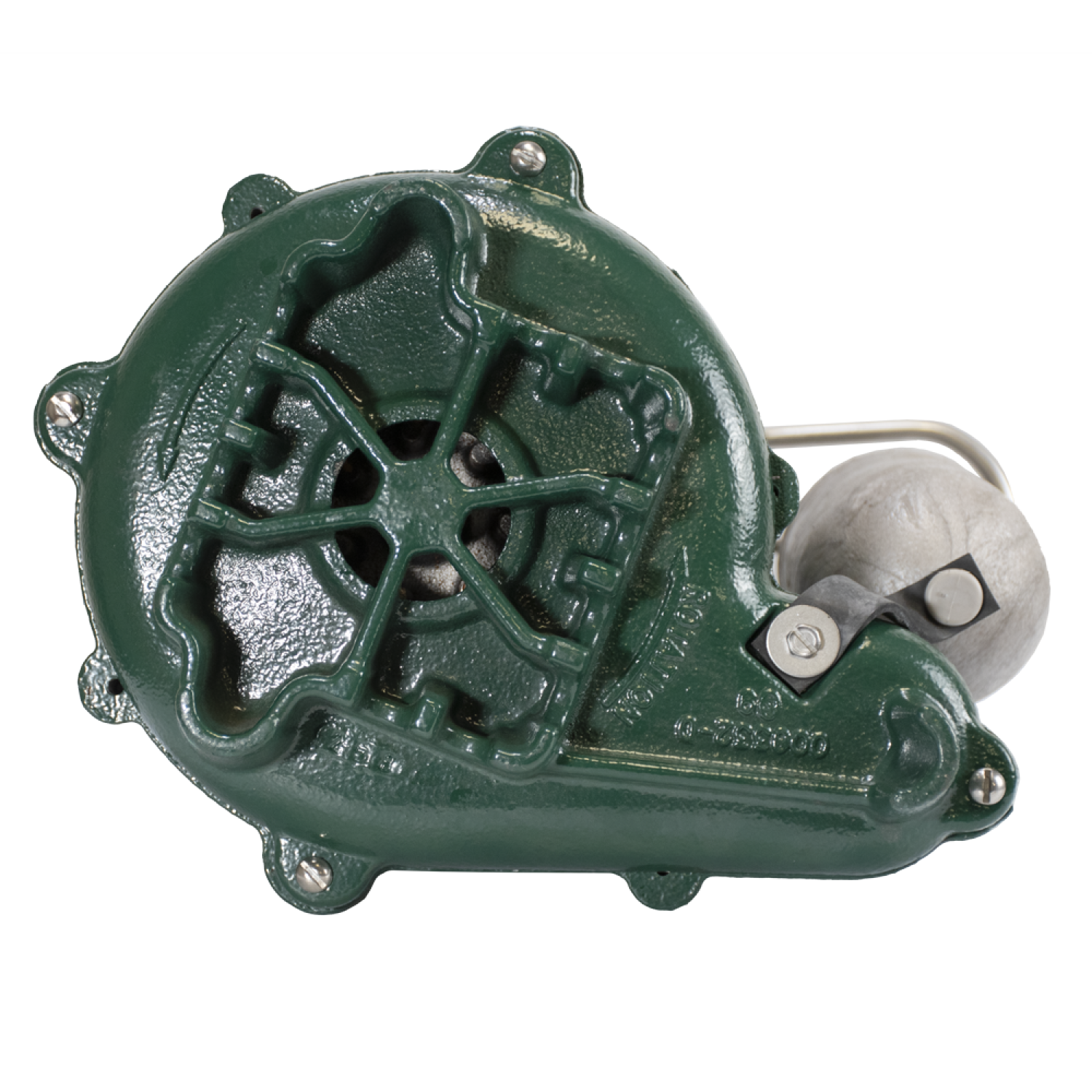

    • No screens to clog

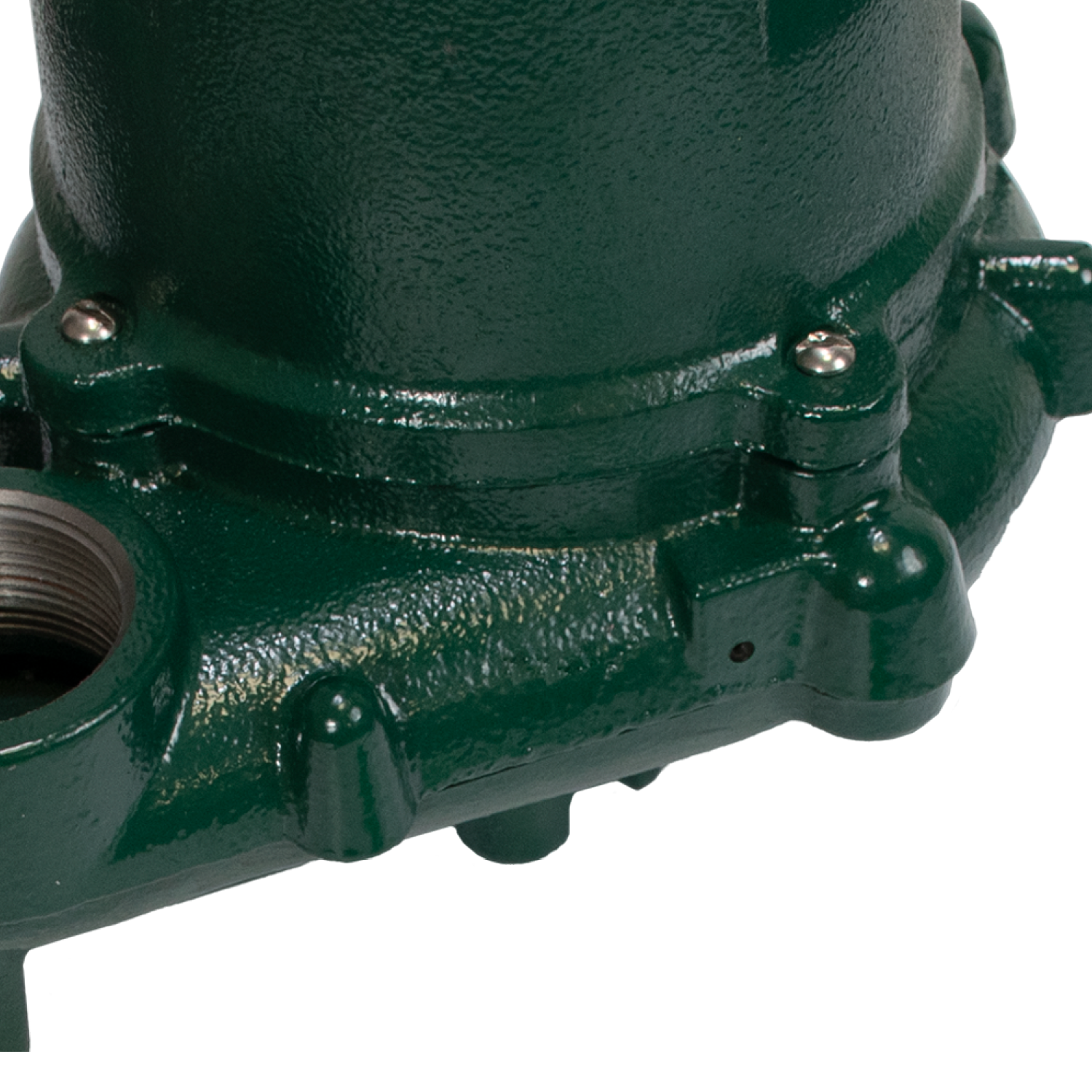

    • Watertight, neoprene square ring between motor and pump housing

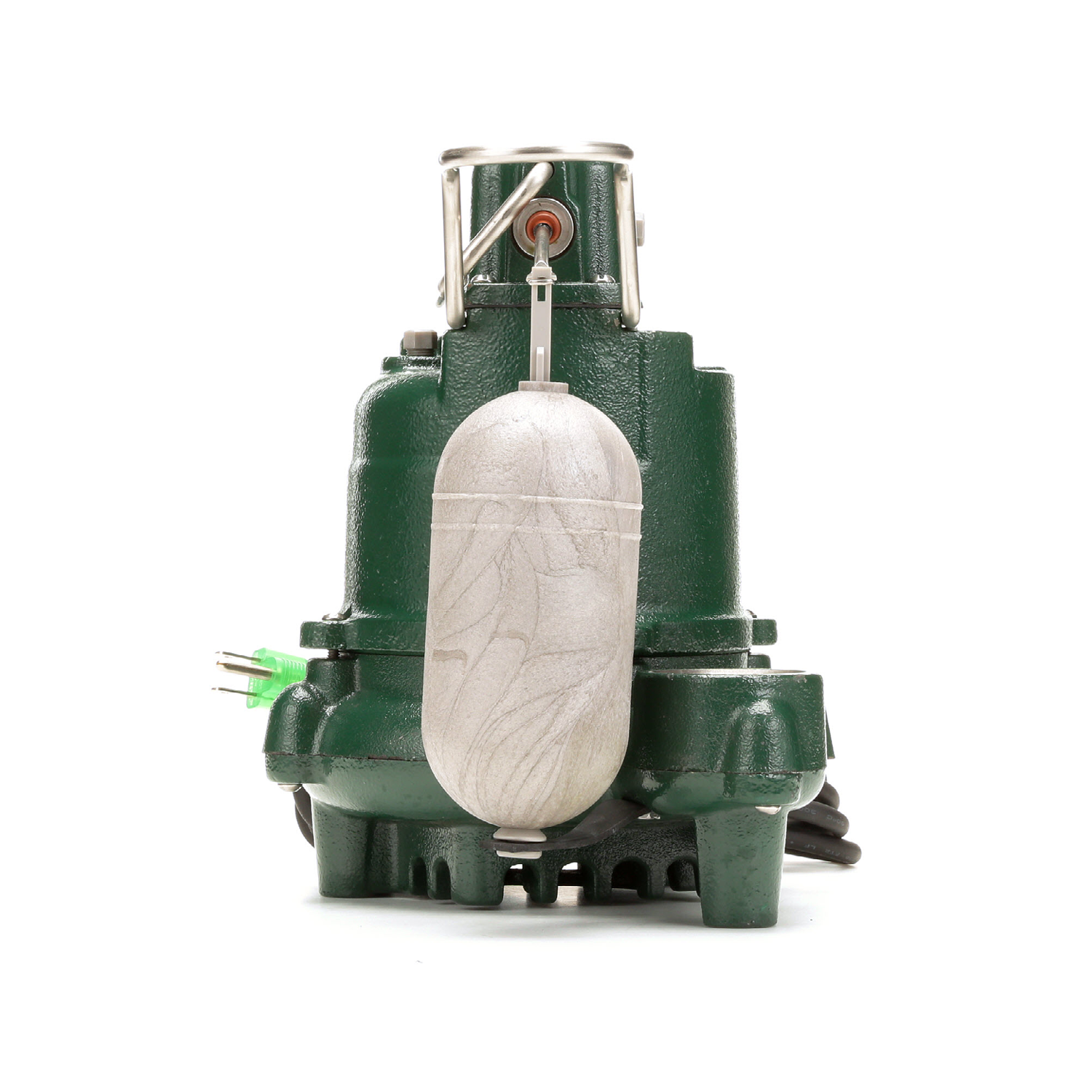

    • Solid, buoyant, polypropylene float
    • Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
    • Upper and lower sleeve bearings running in bath of oil
    • Entire unit pressure-tested after assembly
    • Carbon and ceramic shaft seal
    • Maximum temperature for effluent or dewatering: 130 °F (54 °C)
    • Passes 1/2” (12 mm) spherical solids

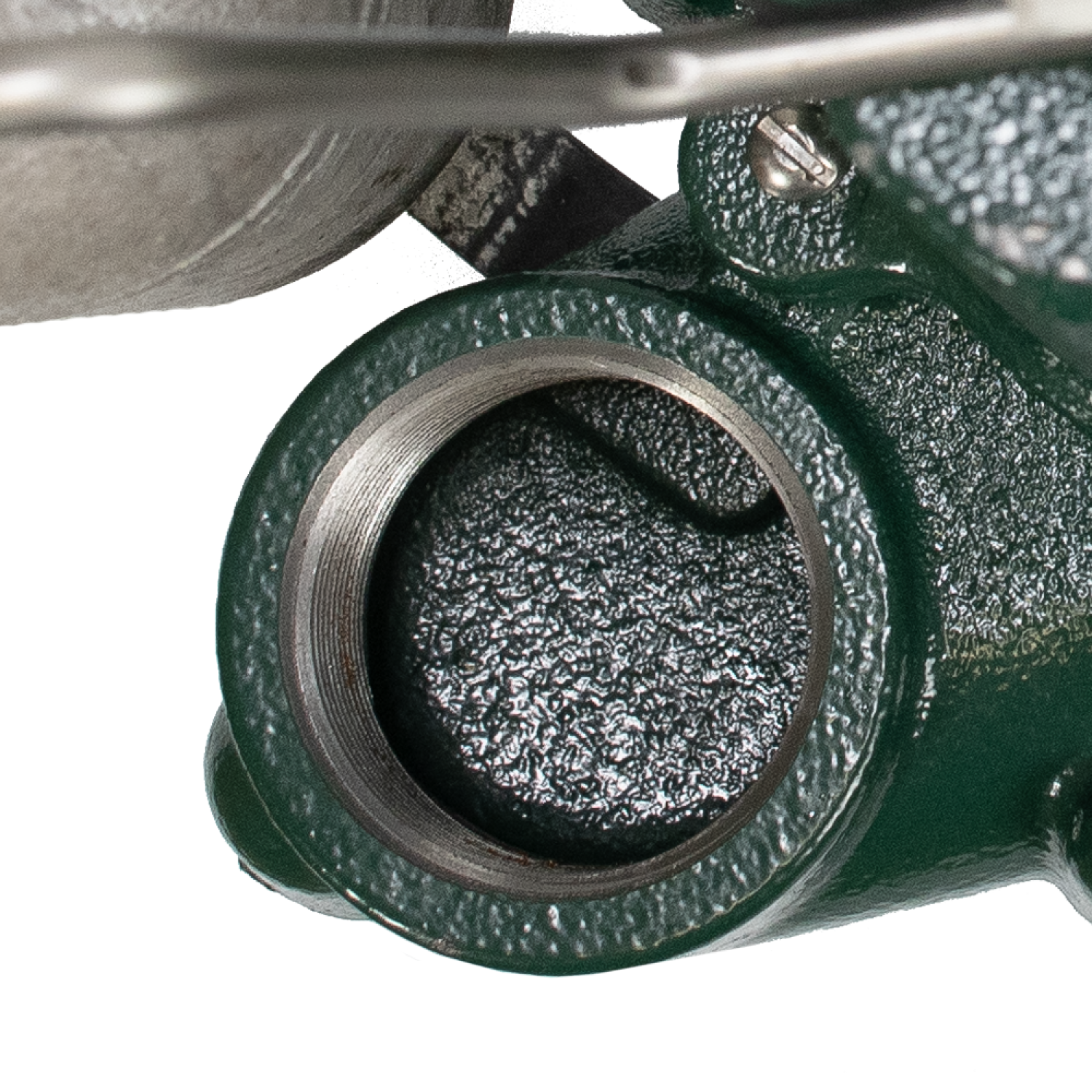

    • 1-1/2” NPT discharge
    • On point: 7-1/4” (18 cm)
    • Off point: 3” (8 cm)
    • Major width: 10-3/32″ (26.2 cm)
    • Major height: 10-1/16″ (25.6 cm)
    • Watertight and dust-tight
    • Permanently oiled bearings
    • Cast iron impeller
    • 5 year limited warranty

    Consult Factory for Special Applications:

    • Variable level long cycle systems
    • Alarm systems
    • Duplex systems
    • Variable level control systems.

    Notes

    The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non automatic pumps.

    Reserve Powered Design.

    For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump

  • Product Specifications
    Motor 3/10 HP
    Voltage 115 V
    Phase 1 Ph
    RPM 1550 RPM
    Type Shaded pole
    Insulation Class B
    Amps 9.7 Amps
    Operation Automatic
    Auto On / Off Points 7-1/4″ (18.4 cm) / 3″ (7.6 cm)
    Discharge Size 1-1/2″ NPT
    Solids Handling 1/2″ (12 mm) spherical solids
    Cord Length 10′ (3.1 m) standard

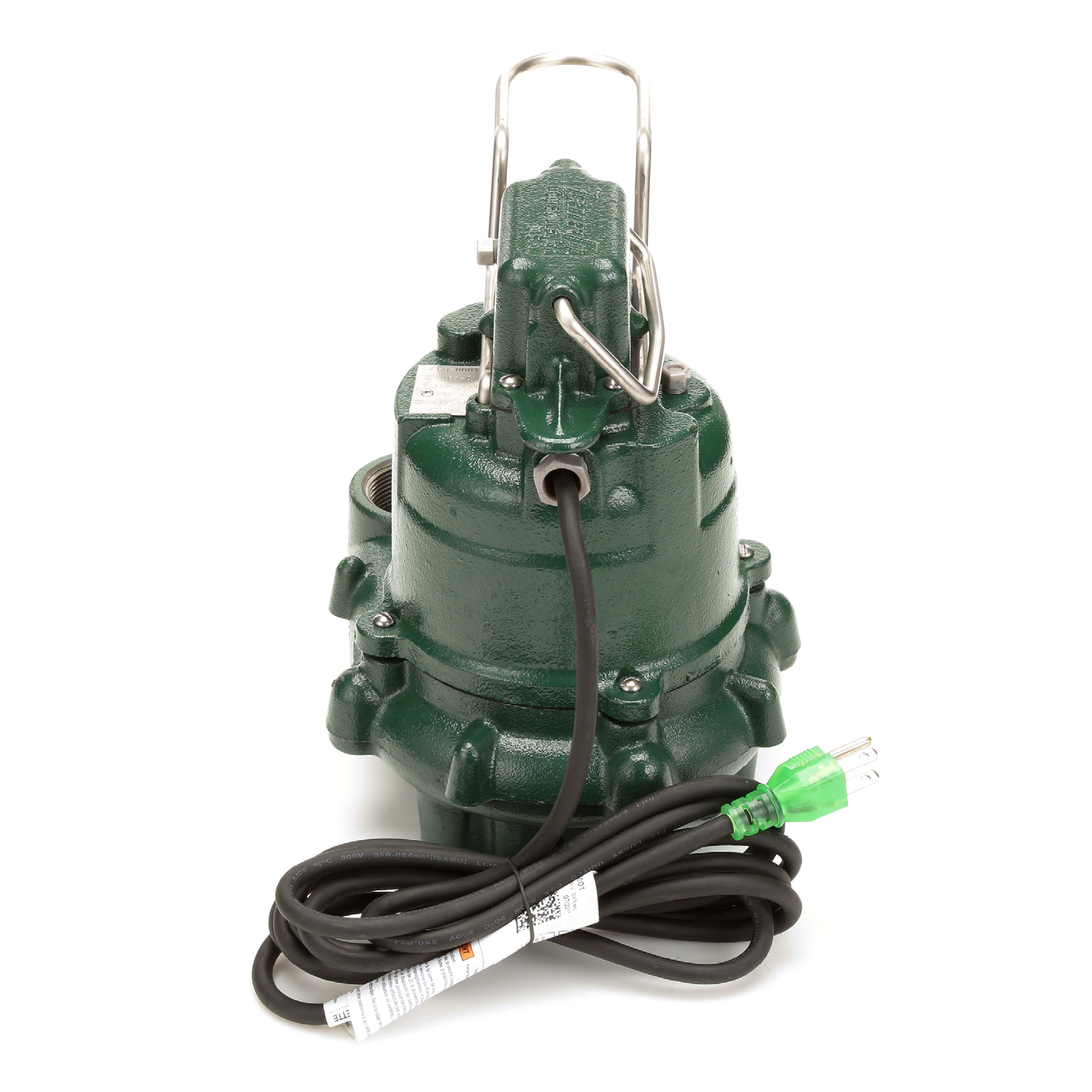

    Cord Type UL listed with 3-wire grounded plug
    Max Head 19.25′ (5.9 m)
    Max Flow Rate 43 GPM (163 LPM)
    Max Operating Temperature 130 °F (54 °C)
    Cooling Oil filled
    Motor Protection Auto reset thermal overload
    Cap Cast iron
    Motor Housing Cast iron
    Pump Housing Cast iron
    Base Cast iron
    Upper Bearing Sleeve bearing
    Lower Bearing Sleeve bearing
    Mechanical Seals Carbon and ceramic
    Impeller Type Non-clogging vortex
    Impeller Cast iron
    Hardware Stainless steel
    Motor Shaft AISI 1215 cold rolled steel
    Gasket Neoprene
