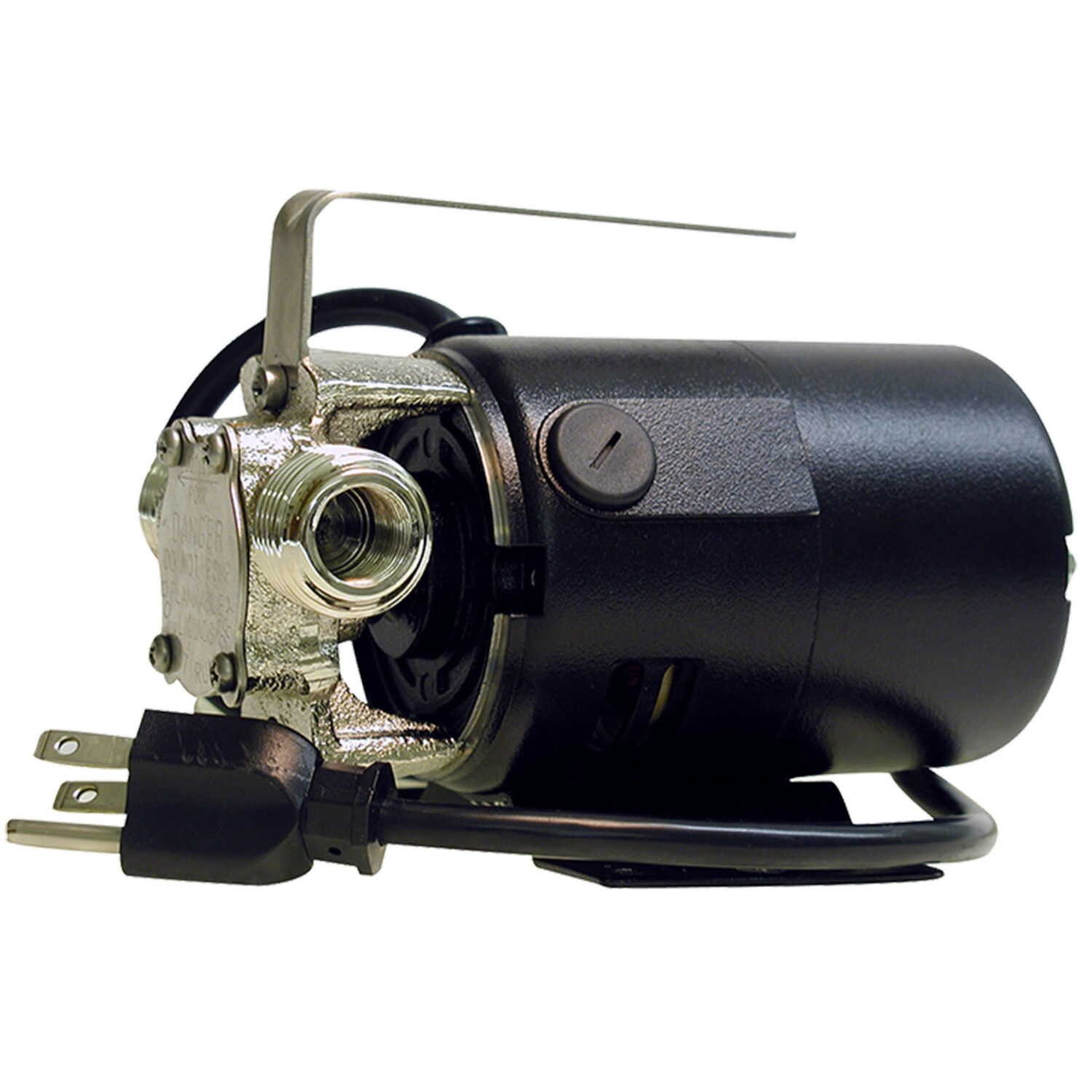

Model 314 Transfer Pump
X
Model 314 Transfer Pump
General Water Transfer
Portable, non-submersible utility pump for dewatering.
-
Features & Benefits
- Cast iron pump housing for long life
- Engineered thermoplastic impeller designed for durability
- Use for removing water from water heaters, power washing, water transfer and adding propylene glycol antifreeze to radiant heating lines
- Handle on prime plug allows for easy priming (no tools required)
- Permanently-lubricated ball bearings
- Carbon ceramic shaft seal
- 20′ (6 m) power cord
- On/off switch on motor housing
- Includes 3/4″ NPT brass, lead-free garden hose adapters, suction screen and extra set of brushes
- Maximum temperature for dewatering: 104 °F (40 °C)
- 1 year limited warranty
-
Product Specifications
Motor 1/2 HP Voltage 115 V Phase 1 Ph Hertz 60 Hz Operation Nonautomatic Discharge Size 3/4″ NPT or standard garden hose Cord Length 20′ (6 m) standard Cord Type Grounded plug Max Head 110′ (33.5 m) Max Flow Rate 1400 GPH (5300 LPH) Max Operating Temperature 104 °F (40 °C) Cooling Air Pump Housing Cast iron Mechanical Seals Carbon and ceramic Impeller Engineered thermoplastic
-
Literature
Technical Support Literature
Sales Literature
Model Comparison Charts
- Product Model Comparison Chart: 60hz
model seal mode volts phase amps hp hz lbs kg 314 Single Non 115 1 1/2 60 17 8
Pump Performance Curves
IL1053 Performance Curve, Model 314: 60 Hz
- Product Model Comparison Chart: 60hz
- Cast iron pump housing for long life
- Engineered thermoplastic impeller designed for durability
- Use for removing water from water heaters, power washing, water transfer and adding propylene glycol antifreeze to radiant heating lines
- Handle on prime plug allows for easy priming (no tools required)
- Permanently-lubricated ball bearings
- Carbon ceramic shaft seal
- 20′ (6 m) power cord
- On/off switch on motor housing
- Includes 3/4″ NPT brass, lead-free garden hose adapters, suction screen and extra set of brushes
- Maximum temperature for dewatering: 104 °F (40 °C)
- 1 year limited warranty
| Motor | 1/2 HP | |
| Voltage | 115 V | |
| Phase | 1 Ph | |
| Hertz | 60 Hz | |
| Operation | Nonautomatic | |
| Discharge Size | 3/4″ NPT or standard garden hose | |
| Cord Length | 20′ (6 m) standard | |
| Cord Type | Grounded plug | |
| Max Head | 110′ (33.5 m) | |
| Max Flow Rate | 1400 GPH (5300 LPH) | |
| Max Operating Temperature | 104 °F (40 °C) | |
| Cooling | Air | |
| Pump Housing | Cast iron | |
| Mechanical Seals | Carbon and ceramic | |
| Impeller | Engineered thermoplastic | |
|
|
||
Technical Support Literature
Sales Literature
Model Comparison Charts
- Product Model Comparison Chart: 60hz
model seal mode volts phase amps hp hz lbs kg 314 Single Non 115 1 1/2 60 17 8
Pump Performance Curves
IL1053 Performance Curve, Model 314: 60 Hz
