Model 264 Sewage Pump


Model 264 Sewage Pump

Residential Use Sewage Pumps

Submersible sewage/effluent or dewatering pumps.

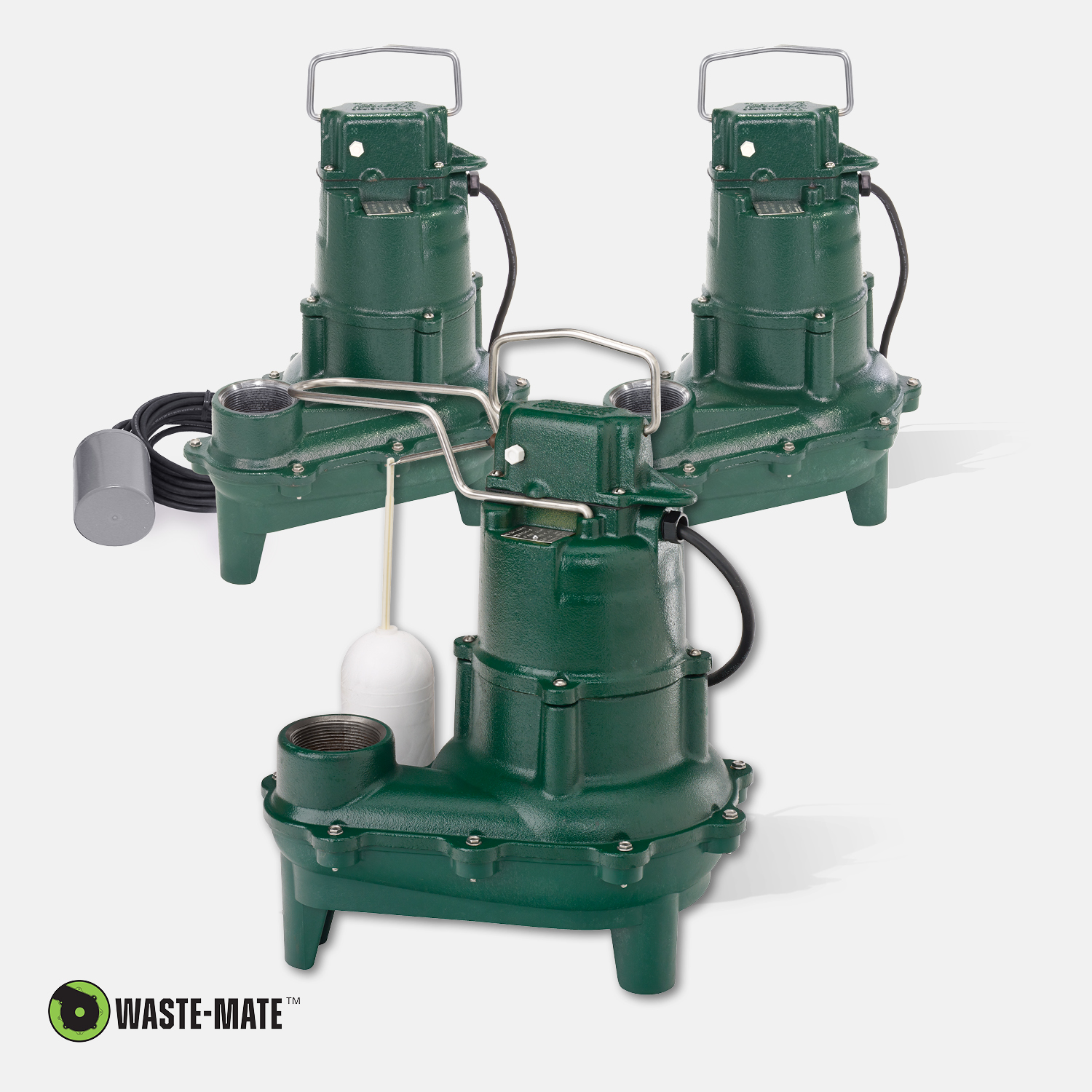

Zoeller Pump Company’s Model 264 Sewage Pump is a high-performance product. Featuring cast iron construction for durability, the design includes stainless steel bolts and screws on the guard, handle, arm, and seal. The powder-coated epoxy finish provides impressive corrosion resistance.

This float-operated and fully submersible pump works for sewage, effluent, and dewatering purposes. An innovative vortex impeller uses centrifugal force to push fluid against the pump volute. With this method, the impeller vanes avoid coming into contact with the liquid, which helps prevent clogs. This model offers a discharge size of 2 inches and allows 2-inch spherical solids to pass through effortlessly.

The models we offer can come with a piggyback variable-level float switch. This convenient feature can successfully turn a non-automatic pump into an automatic pump. The switch’s design includes an internal sensor to detect the water level. Once the water reaches a certain threshold, it triggers a switch and activates the pump.

  • Features & Benefits
    • Float-operated, submersible (NEMA 6), 2-pole switch
    • Durable, cast iron construction – switch cap, motor and pump housing
    • Engineered plastic base
    • Stainless steel screws, bolts, handle, guard, arm and seal assembly
    • Corrosion-resistant, powder coated epoxy finish
    • Hermetically-sealed, automatic reset thermal overload protection
    • Upper and lower sleeve bearings running in bath of oil
    • Carbon and ceramic shaft seal
    • Passes 2” (50 mm) spherical solids
    • 2” NPT discharge
    • On point: 12-1/2” (31.8 cm)
    • Off point: 4-1/2” (11.4 cm)
    • Simplex and duplex systems available
    • Automatic and non-automatic models available
    • Non-automatic for variable level systems
    • Models available packaged with piggyback variable level float switch
    • 3 year limited warranty

    Consult factory for special applications:

    • Electrical alternators for duplex systems available with variable level float switches.
    • Minimum recommended basin size – simplex: 18” x 30” (45.7 x 76.2 cm), duplex: 30” x 36” (76.2 x 91.4 cm)
    • Standard automatic – 4/10 HP, 34.5 lbs.(15.6 kg)
    • High water alarms available
    • Mechanical alternators available for duplex systems
    • The approximate gallons pumped out per cycle for standard models are:
    Tank Diameter Gallons / Liters Pumped
    18” (46 cm) simplex 8 gallons / 36 liters
    24” (60 cm) simplex 15 gallons / 68 liters
    30” (76 cm) duplex 22 gallons / 100 liters
    36” (91 cm) duplex 33 gallons / 150 liters
    48” (122 cm) duplex 60 gallons / 273 liters

    Notes
    The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non-automatic pumps.

    Reserve powered design.

    For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

    *May be used in those states where codes do not restrict solids size in effluent systems.

  • Product Specifications
    Motor 4/10 HP
    Voltage 115 or 230 V
    Phase 1 Ph
    Hertz 60 Hz
    RPM 1725 RPM
    Type Permanent split capacitor
    Insulation Class B
    Amps 4.7 – 9.4 Amps
    Operation Automatic or nonautomatic
    Auto On / Off Points 12-1/2″ / 4-1/2 (31.8 cm / 11.4 cm)
    Discharge Size 2″ NPT
    Solids Handling 2″ (50 mm) spherical solids
    Cord Length 10′ (3 m) automatic, 15′ (5 m) nonauto
    Cord Type UL listed, 3-wire cord and plug
    Max Head 18′ (5.5 m)
    Max Flow Rate 90 GPM (341 LPM)
    Max Operating Temperature 130 °F (54 °C)
    Cooling Oil filled
    Motor Protection Auto reset thermal overload
    Cap Cast iron
    Motor Housing Cast iron
    Pump Housing Cast iron
    Base Engineered plastic
    Upper Bearing Sleeve bearing
    Lower Bearing Sleeve bearing
    Mechanical Seals Carbon and ceramic
    Impeller Type Non-clogging vortex
    Impeller Engineered plastic
    Hardware Stainless steel
    Motor Shaft A151 1215 Steel
    Gasket Neoprene or Buna-N


    cCSAus      SSPMA      Powder Coated Tough

  • Literature

    Sales Literature

    Model Comparison Charts

    • Product Model Comparison Chart: 60hz
      model seal mode volts phase amps hp hz lbs kg
      M264 Single Auto 115 1 9.4 4/10 60 35.5 16
      N264 Single Non 115 1 9.4 4/10 60 34.5 15.6
      BN264 Single Auto 115 1 9.4 4/10 60 40 18
      D264 Single Auto 230 1 4.7 4/10 60 35.5 16
      E264 Single Non 230 1 4.7 4/10 60 34.5 15.6
      BE264 Single Auto 230 1 4.7 4/10 60 40 18

    Pump Performance Curves

    Performance Curve, Model 264: 60 Hz 009931

    Performance Curve Model 264, 009931

    Performance Curve Model 264, 009931

  • Packages & Accessories
  • Float-operated, submersible (NEMA 6), 2-pole switch
  • Durable, cast iron construction – switch cap, motor and pump housing
  • Engineered plastic base
  • Stainless steel screws, bolts, handle, guard, arm and seal assembly
  • Corrosion-resistant, powder coated epoxy finish
  • Hermetically-sealed, automatic reset thermal overload protection
  • Upper and lower sleeve bearings running in bath of oil
  • Carbon and ceramic shaft seal
  • Passes 2” (50 mm) spherical solids
  • 2” NPT discharge
  • On point: 12-1/2” (31.8 cm)
  • Off point: 4-1/2” (11.4 cm)
  • Simplex and duplex systems available
  • Automatic and non-automatic models available
  • Non-automatic for variable level systems
  • Models available packaged with piggyback variable level float switch
  • 3 year limited warranty

Consult factory for special applications:

  • Electrical alternators for duplex systems available with variable level float switches.
  • Minimum recommended basin size – simplex: 18” x 30” (45.7 x 76.2 cm), duplex: 30” x 36” (76.2 x 91.4 cm)
  • Standard automatic – 4/10 HP, 34.5 lbs.(15.6 kg)
  • High water alarms available
  • Mechanical alternators available for duplex systems
  • The approximate gallons pumped out per cycle for standard models are:
Tank Diameter Gallons / Liters Pumped
18” (46 cm) simplex 8 gallons / 36 liters
24” (60 cm) simplex 15 gallons / 68 liters
30” (76 cm) duplex 22 gallons / 100 liters
36” (91 cm) duplex 33 gallons / 150 liters
48” (122 cm) duplex 60 gallons / 273 liters

Notes
The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non-automatic pumps.

Reserve powered design.

For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

*May be used in those states where codes do not restrict solids size in effluent systems.

Motor 4/10 HP
Voltage 115 or 230 V
Phase 1 Ph
Hertz 60 Hz
RPM 1725 RPM
Type Permanent split capacitor
Insulation Class B
Amps 4.7 – 9.4 Amps
Operation Automatic or nonautomatic
Auto On / Off Points 12-1/2″ / 4-1/2 (31.8 cm / 11.4 cm)
Discharge Size 2″ NPT
Solids Handling 2″ (50 mm) spherical solids
Cord Length 10′ (3 m) automatic, 15′ (5 m) nonauto
Cord Type UL listed, 3-wire cord and plug
Max Head 18′ (5.5 m)
Max Flow Rate 90 GPM (341 LPM)
Max Operating Temperature 130 °F (54 °C)
Cooling Oil filled
Motor Protection Auto reset thermal overload
Cap Cast iron
Motor Housing Cast iron
Pump Housing Cast iron
Base Engineered plastic
Upper Bearing Sleeve bearing
Lower Bearing Sleeve bearing
Mechanical Seals Carbon and ceramic
Impeller Type Non-clogging vortex
Impeller Engineered plastic
Hardware Stainless steel
Motor Shaft A151 1215 Steel
Gasket Neoprene or Buna-N


cCSAus      SSPMA      Powder Coated Tough

Sales Literature

Model Comparison Charts

  • Product Model Comparison Chart: 60hz
    model seal mode volts phase amps hp hz lbs kg
    M264 Single Auto 115 1 9.4 4/10 60 35.5 16
    N264 Single Non 115 1 9.4 4/10 60 34.5 15.6
    BN264 Single Auto 115 1 9.4 4/10 60 40 18
    D264 Single Auto 230 1 4.7 4/10 60 35.5 16
    E264 Single Non 230 1 4.7 4/10 60 34.5 15.6
    BE264 Single Auto 230 1 4.7 4/10 60 40 18

Pump Performance Curves

Performance Curve, Model 264: 60 Hz 009931

Performance Curve Model 264, 009931

Performance Curve Model 264, 009931
